DT系列脱硫泵

  • 材质:抗磨耐腐高铬合金
  • 寿命:普通产品1.25-1.5倍
  • 能耗:高效,低能耗
  • 交货:7个工作日-30个工作日不等
  • 可替代产品系列:
  • 在线快捷咨询
  • 电话咨询:0311-86480968
  • 产品描述及应用:

    DT系列脱硫循环泵为轴向吸入、单级、单吸、悬架离心式结构。该系列泵在水力设计、结构设计以及铸件所用材料上,综合应用了国内外同类产品的优点并加以创新。具有高效节能、抗磨耐腐、振动小、噪声低、运行可靠、使用寿命长、维修方便等特点。



    DT系列脱硫循环泵的泵壳为单层壳体结构。叶轮与轴采用螺纹连结,轴封采用机械密封。悬架部分采用稀油润滑形式。过流部件叶轮、蜗壳、后护板等均采用我厂自行研制的抗磨耐腐高铬合金材料制造。



    DT系列脱硫泵应用

    可广泛用于火电、炼铝和炼油等行业的脱硫系统输送石灰石或石膏浆液。浆液中氯离子含量最高可达60000ppm,浆液的PH值允许在4—13之间, 浆液温度≤65°C,浆液重量浓度Cw最高可达60%。




    DT系列脱硫泵型号:

    900DT、800DT、700DT、600DT、500DT、400DT、350DT、300DT

    200DT、150DT、100DT、80DT、65DT、50DT、40DT、25DT

    3D结构图:
    性能参数表:
    型号
    Type
    转速
    Speed
    n
    流量
    Capacity
    Q
    扬程
    Head
    H
    轴功率
    Power of shaft
    Pa
    效率
    η
    必须汽蚀余量
    NPSHr
    电机
    功率/电压
    Power/Voltage
    r/minm³/hmKW%mKW/V
    800DT-A90590620028.7553.287.62.7710/6000
    880026.1700.489.33.5900/6000
    970023.5715.286.83.9900/6000
    490517020.0321.587.62.0400/6000
    733818.1405.089.32.5500/6000
    808916.3413.786.82.9560/6000
    700DT-A84590425024.5326.386.92.8500/6000
    630022.3430.988.83.5560/6000
    736020.1467.486.24.0630/6000
    490354517.0188.986.92.0250/6000
    525515.5250.088.82.6315/6000
    614014.0271.686.23.0355/6000
    600DT-A82590330027.8343.272.83.0500/6000
    470024.7358.088.33.7500/6000
    530021.7362.986.34.0500/6000
    560020.4368.284.54.0500/6000
    490271818.9192.272.82.2280/6000
    387116.8200.688.32.8280/6000
    436814.7202.586.33.0280/6000
    461213.8205.184.53.0280/6000
    500DT-A85590204026.8204.572.84.1250/6000
    340024.4266.784.7355/6000
    408022.4305.280.1400/6000
    490170218.6118.472.83.1220/6000
    283617.0155.084.7220/6000
    340315.3177.080.1220/6000
    350DT-A78740133251.1289.664.06.5355/6000
    243044.5377.778.0500/6000
    286539.6408.775.6500/6000
    590106232.5146.964.03.5185/6000
    193828.3191.578.0250/6000
    228425.2207.375.6280/6000
    300DT-A60980117063.1235.671.88.4315/6000
    177947.1281.481.1355/6000
    240336.1313.375.4400/6000
    74087829.999.671.84.3132/380
    133526.5118.881.1160/380
    180320.3132.275.4160/380
    200DT-45B99027931.037.462.93.355/380
    55726.149.080.875/380
    64523.352.677.875/380
    73020616.915.162.92.022/380
    41014.219.680.830/380
    47512.721.177.830/380
    150DT-55B99028053.764.863.23.790/380
    51748.088.376.5110/380
    63045.9100.878.1132/380
    74020930.027.063.22.337/380
    38726.836.976.555/380
    47125.742.278.155/380
    150DT-5098012344.627.654.13.537/380
    22140.136.965.455/380
    27937.243.465.255/380
    7409224.711.454.12.118.5/380
    16522.315.365.422/380
    20820.617.965.230/380
    150DT-40148026061.268.863.06.590/380
    44053.888.273.1110/380
    50350.795.472.8132/380
    98017126.519.663.02.630/380
    28923.325.173.137/380
    33121.927.172.837/380
    100DT-4514808876.443.642.06.055/380
    16665.256.951.875/380
    21954.366.548.790/380
    9705732.812.142.02.418.5/380
    10928.016.051.822/380
    14423.318.848.730/380
    100DT-40B148012961.037.756.93.555/380
    21956.148.768.775/380
    26853.655.670.475/380
    9708526.210.756.91.715/380
    14424.113.868.722/380
    17623.015.770.422/380
    100DT-35148016345.933.560.94.145/380
    27841.543.771.955/380
    32339.247.173.2 75/380
    97010719.79.460.91.915/380
    18217.812.371.918.5/380
    21216.813.373.218.5/380
    80DT-3614808647.123.347.43.230/380
    15142.028.560.737/380
    16739.929.362.037/380
    9705620.26.547.41.511/380
    9918.08.060.715/380
    10917.18.262.015/380
    65DT-4014807163.226.246.74.537/380
    14157.535.662.145/380
    15954.636.162.155/380
    9704727.17.446.72.111/380
    9224.710.062.115/380
    10423.510.762.115/380
    65DT-3014804435.69.146.74.615/380
    7932.612.854.618.5/380
    9930.715.453.822/380
    9602915.22.646.72.25.5/380
    5113.93.554.65.5/380
    6413.14.253.87.5/380
    50DT-40D14803351.713.135.42.518.5/380
    6843.417.845.430/380
    7640.818.944.730/380
    9702222.53.835.41.25.5/380
    4518.95.145.17.5/380
    5017.75.444.711/380
    50DT-3014803436.37.843.11.611/380
    5531.99.948.515/380
    7826.412.445.418.5/380
    9602215.72.243.10.84/380
    3613.82.848.54/380
    5111.43.545.45.5/380
    40DT-25 [a]295035.588.620.741.3-30/380
    58.573.527.742.537/380
    74.760.831.239.645/380
    144017.321.12.441.32.64/380
    28.717.53.242.55.5/380
    36.514.53.639.65.5/380
    40DT-20B293016.657.56.440.93.511/380
    33.349.98.553.015/380
    37.147.19.252.015/380
    14308.113.70.740.90.91.5/380
    16.311.91.053.02.2/380
    18.111.21.152.02.2/380
    40DT-19293016.357.16.539.24.911/380
    30.054.98.155.415/380
    34.953.78.758.815/380
    14007.813.00.739.21.21.5/380
    14.312.50.955.41.5/380
    16.712.31.058.82.2/380
    40DT-1729009.444.63.433.24.55.5/380
    17.942.74.249.57.5/380
    23.439.34.852.47.5/380
    14004.610.40.433.22.50.75/380
    8.610.00.549.51.1/380
    11.39.20.552.41.1/380
    25DT-2514409.621.61.733.27.13/380
    17.816.62.138.04/380
    19.913.92.133.84/380
    9106.08.60.433.23.30.75/380
    11.26.60.538.01.1/380
    12.55.50.633.81.1/380
    25DT-1529009.234.42.632.75.35.5/380
    17.129.53.341.85.5/380
    19.327.13.540.85.5/380
    13904.47.90.332.71.30.55/380
    8.26.80.441.80.75/380
    6.36.20.440.80.75/380

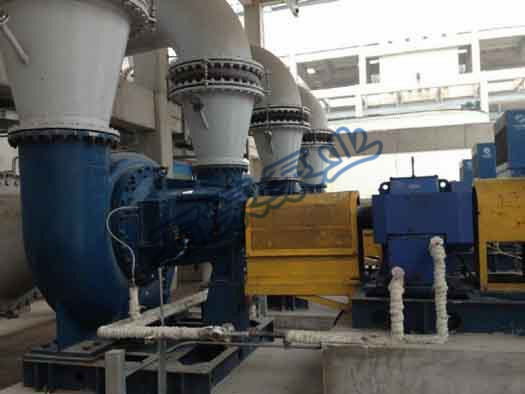

    案例现场:

    鲁能集团某火电厂脱硫系统
